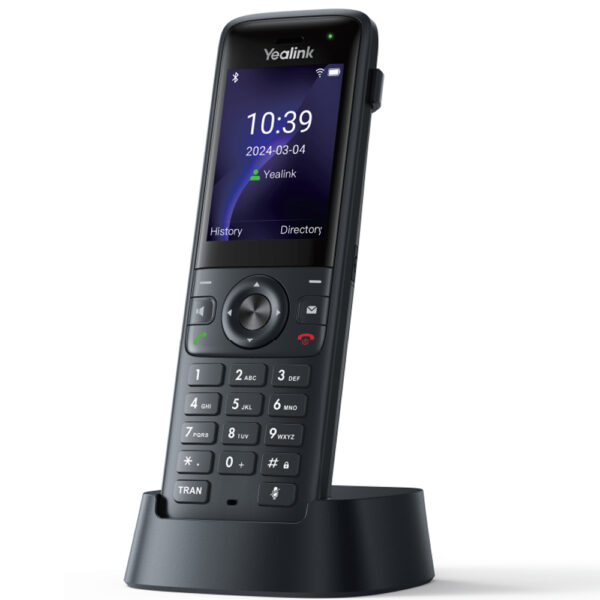

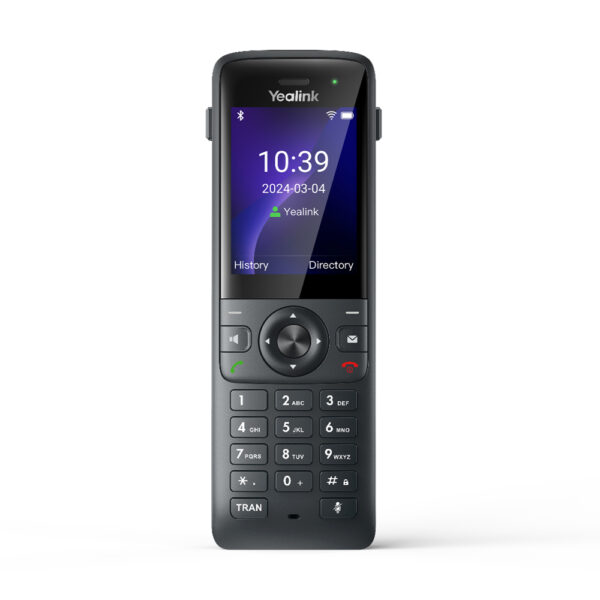

AX83H is an enterprise portable Wi-Fi IP color screen phone that meets wireless communication
needs. The AX83H supports registering up to four SIP accounts and features a 2.4-inch color display. It integrates Yealink’s Optima HD Audio and Smart Noise cancellation technology to deliver exceptional audio quality and clear voice communication. It is equipped with a built-in Bluetooth 5.0 module and a dual-band 2.4G/5G Wi-Fi 6 module, combined with advanced seamless roaming technology, allowing you to stay ahead in the ever-evolving wireless era. In addition, AX83H is equipped with a 2000mAh battery, with a talk time of 9 hours and a standby time of 200 hours. It is widely used in various wireless scenarios such as SMEs, offices, warehouses, supermarkets, and hotels.
Core Features:
- Wi-Fi 6
- Roaming
- HD Audio
- Smart Noise Cancellation
- Bluetooth 5.0
- Quick Charge
- Vibration
- 3.5mm Headset Jack
- Belt Clip
- Type-C
GENERAL INFO:
- Model: AX83H Wi-Fi Phone
- Part number: 1301013
- UPC Code: 841885123893
- EAN Code: 6938818320048
- Package Contents:
- Yealink AX83H Phones
- Charger Cradle
- Rechargeable Battery
- Belt Clip
- Quick Start Guide
- Power Adapter
- Audio Features:
- Optimal HD audio:
- Hearing aid compatible (HAC) compliant
- Audio codec:
- G.722, PCMU (G.711μ), PCMA (G.711A), G.729,
G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC
- DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
- Full-duplex hands-free speakerphone with AEC
- Smart Noise Cancellation Technology
- VAD, CNG, AEC, PLC, AJB, AGC
- Display and Indicator:
- 2.4″ 240×320 TFT color screen
- Keypad backlight
- Vibration
- Wallpaper and screensaver
- LED for call and message waiting indication
- Multilingual user interface
- Caller ID with name, number, and avatar
- Phone Features:
- 4 VoIP accounts
- Speed dial, redial
- Call hold/call transfer/call waiting/call forward
- Emergency call
- Mute, DND
- Auto answer
- Hotline
- Recall
- Local 5-way conferencing
- Direct IP call without SIP proxy
- Ring tone selection/import/delete
- Set date time manually or automatically
- Dial Plan, XML Browser, Action URL/URI
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
- Customizable softkey
- Peripherals:
- Support Bluetooth headset
- Basic functions: answer/end/mute call
- Enhanced functions: redial/call hold/
volume adjustment two-way synchronization
- IP-PBX Features:
- Anonymous call, anonymous call rejection
- Intercom
- Multicast paging
- Call completion
- Message Waiting Indicator (MWI)
- Call Park, call pickup
- Call recording
- Voice mail
- Feature Keys:
- 2 soft keys
- 7 function keys: dial, hang up, handsfree,
voice message, mute, call transfer - Navigation key and OK key
- Interface
- 1 x 3.5 mm headset jack
- 1 x Type-C port
- Network:
- Built-in dual-band Wi-Fi:
- Network standard: 2.4G&5G
IEEE802.11a/b/g/n/ac/ax - Frequency range: 2.4 GHz/ 5.0 GHz
- Roaming: IEEE802.11 k/r/v
- Built-in Bluetooth 5.0:
- Connecting to Bluetooth Headset
- IPv4/IPv6
- SIP v1 (RFC2543), v2 (RFC3261)
- Call server redundancy supported
- NAT traversal:
- SIP link mode:
- Proxy mode and peer-to-peer
- IP Assignment:
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- UDP/TCP/DNS-SRV (RFC 3263)
- QoS:
- Layer 3 ToS DSCP, 802.11e/WMM
- Power:
- Power adapter:
- AC 100~240V input and DC 5V/1.2A output
For a full list of specifications, please refer to the product datasheet
| Weight | 0.81 lbs |
|---|
| Dimensions | 7.13 × 4.09 × 3.54 in |
|---|
| Brand | Yealink |
|---|
| Phone Type | DECT, WiFi / WiFi Capable |
|---|
